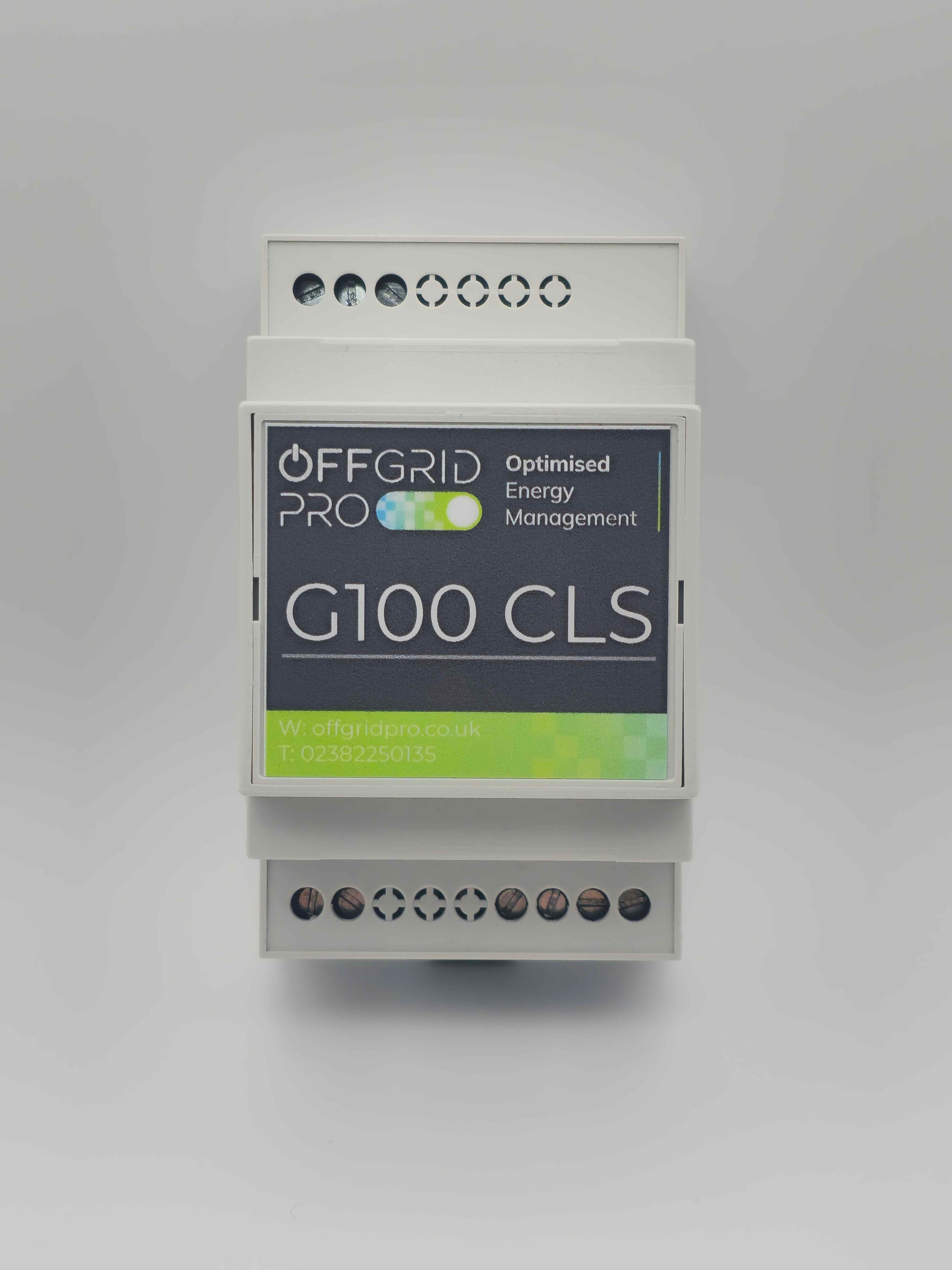

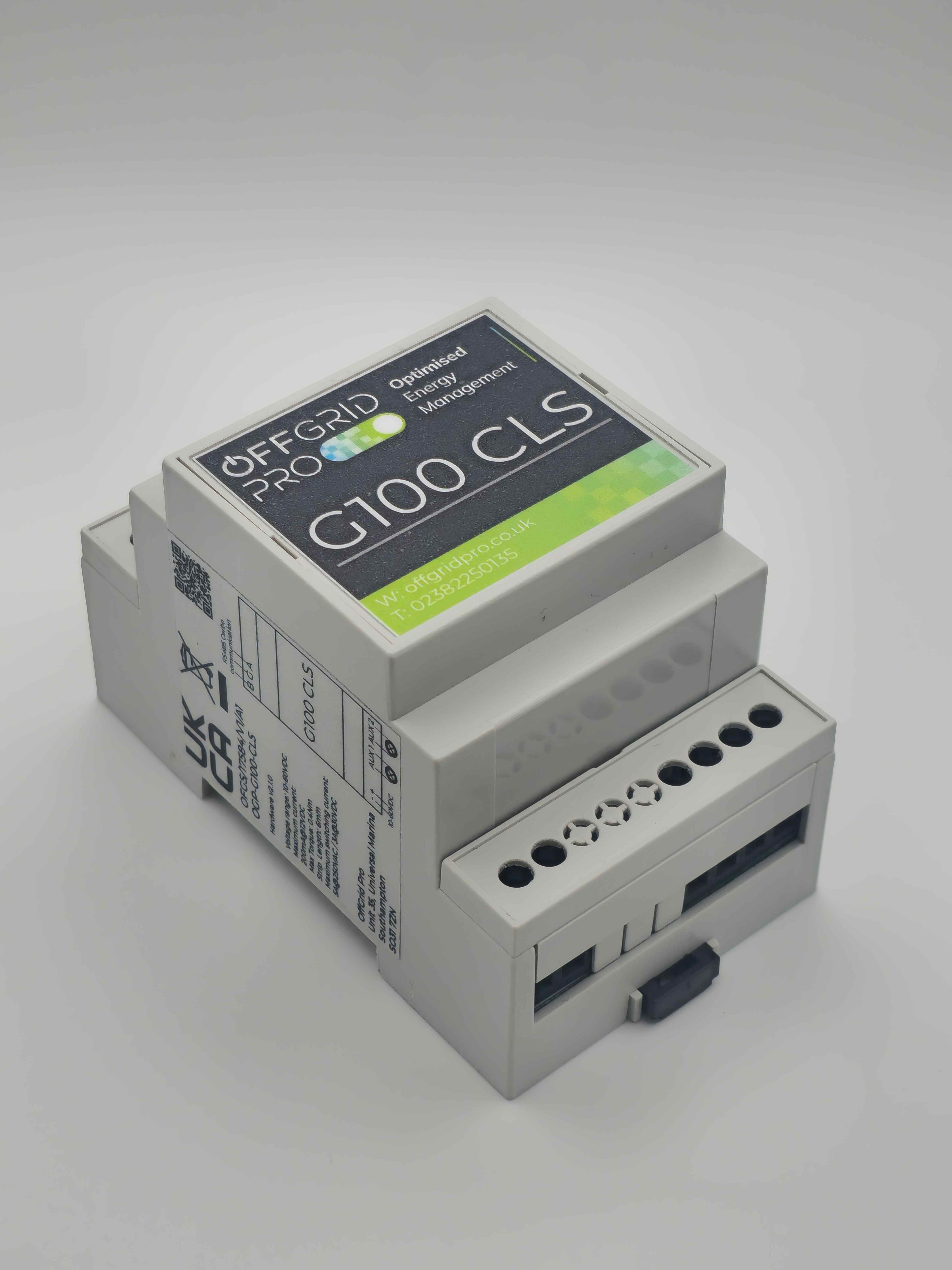

G100 CLS
OffGrid Pro G100 CLS
The First Native G100/2 Compliant Solution for Victron ESS Installations
G100 CLS
£899.00
Sale price
£899.00
Regular price
G100 CLS
£899.00
Sale price
£899.00
Regular price
Taxes included.

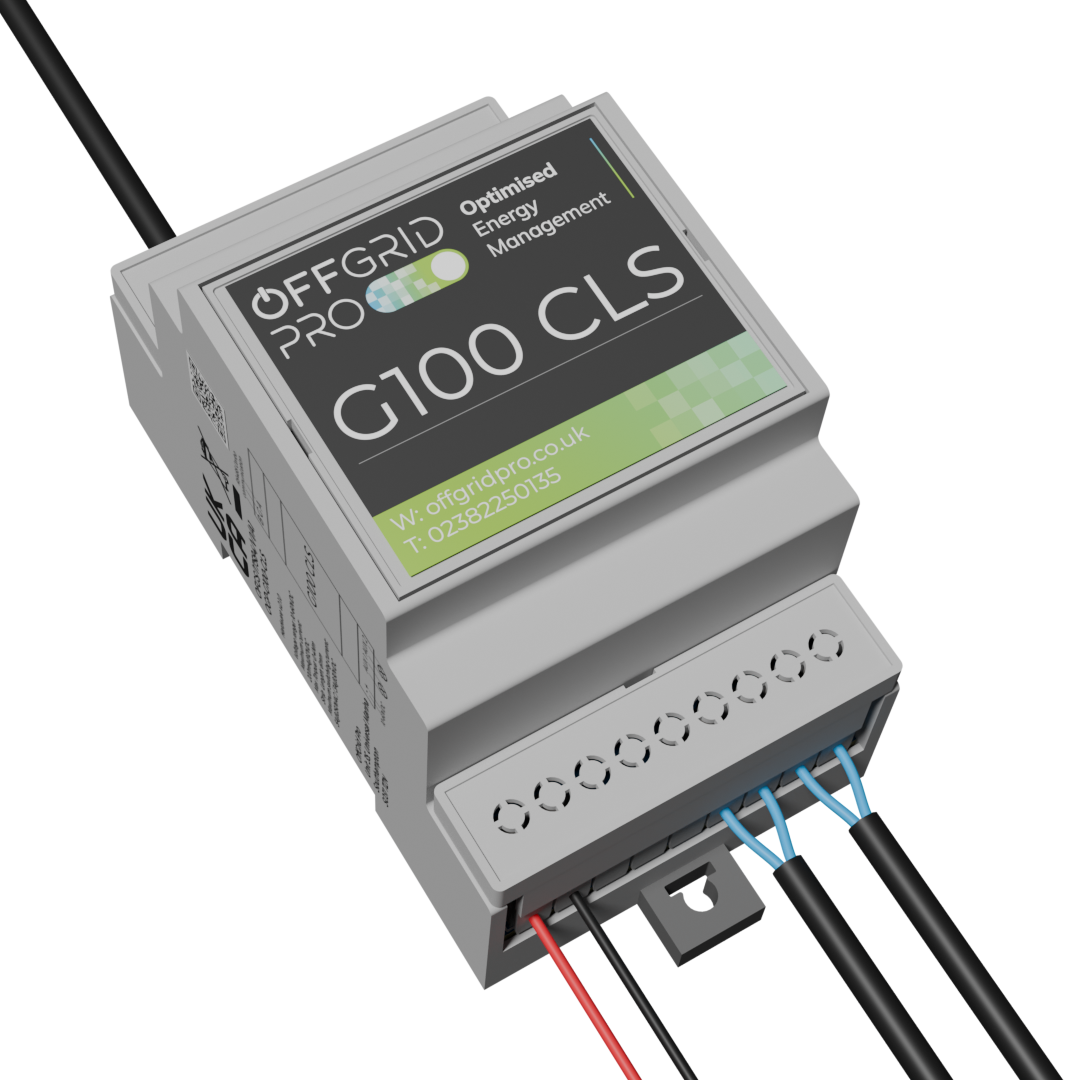

The OffGrid Pro standalone G100 device is an ENA certified CLS which complies with the ENA EREC G100 Issue 2 Amendment 2 specifications suitable for single and multiphase systems. The system features two programmable auxiliary outputs which can be configured to switch any configuration of inverter, consuming device, generation device, as required to be under the export limit.

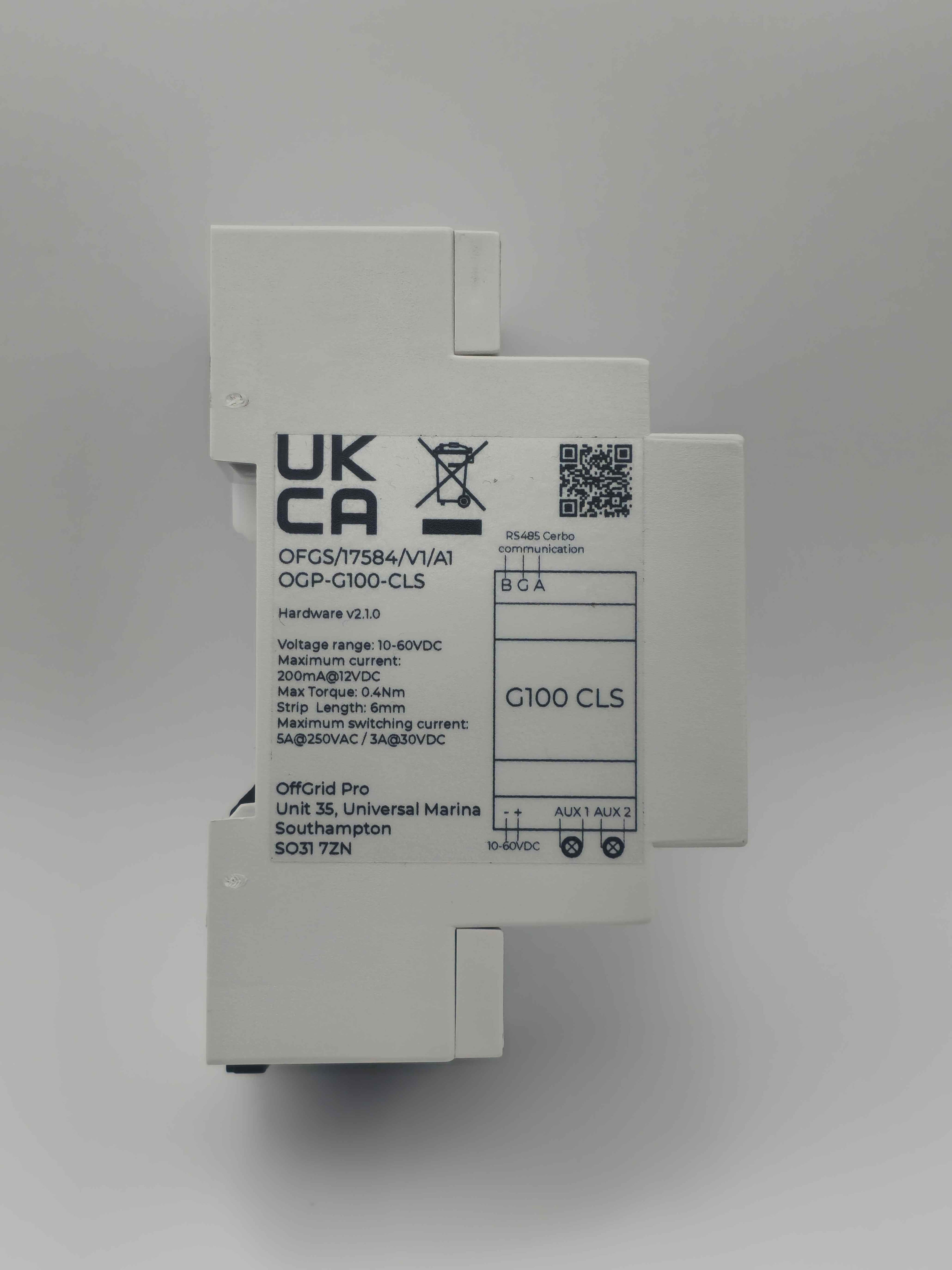

| Voltage input range | 12-60VDC |
| Power consumption | 2.5W |
| Configurable auxiliary channels | 2 |
| Maximum auxiliary channel rating DC | 3A@30VDC |
| Maximum auxiliary channel rating AC | 5A@250VAC |
| Communication method | Modbus RTU |
| Temperature rating | -25 - 70°C |

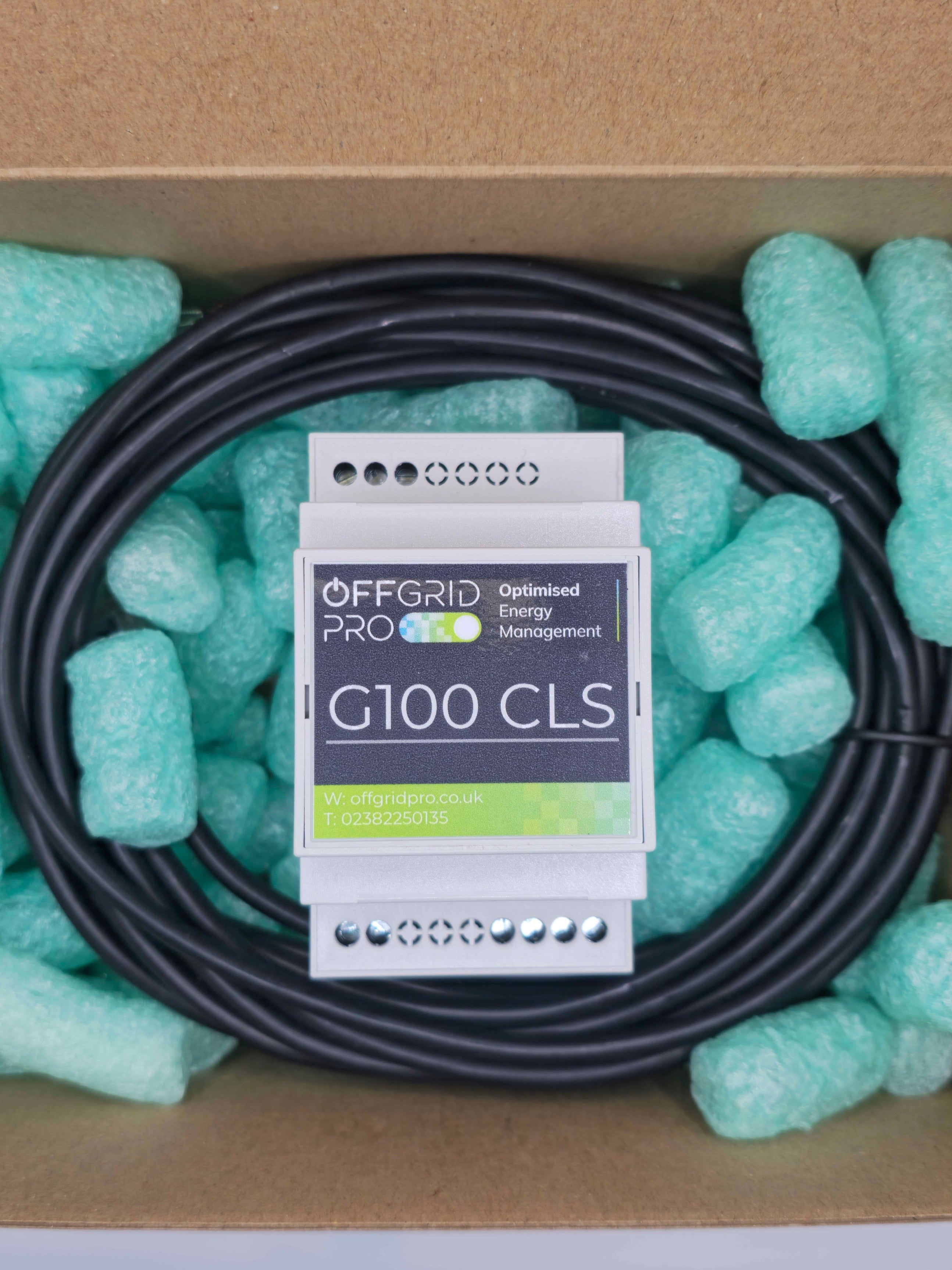

Included in the box is 1x G100 CLS unit, 1x USB to RS485 5m cable, 1x pre-cut tails 3m. Packaged in bio degradable packaging peanuts.

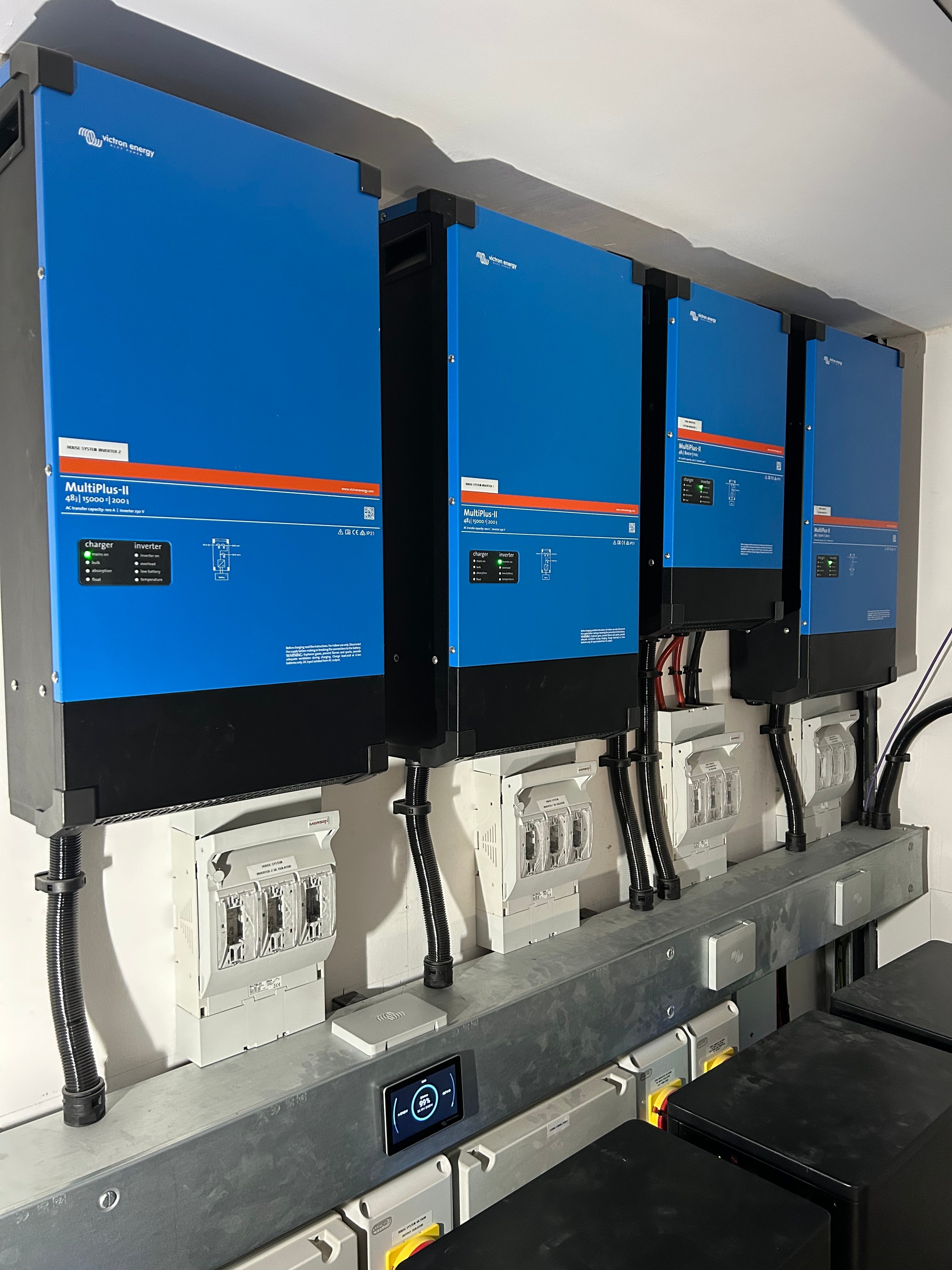

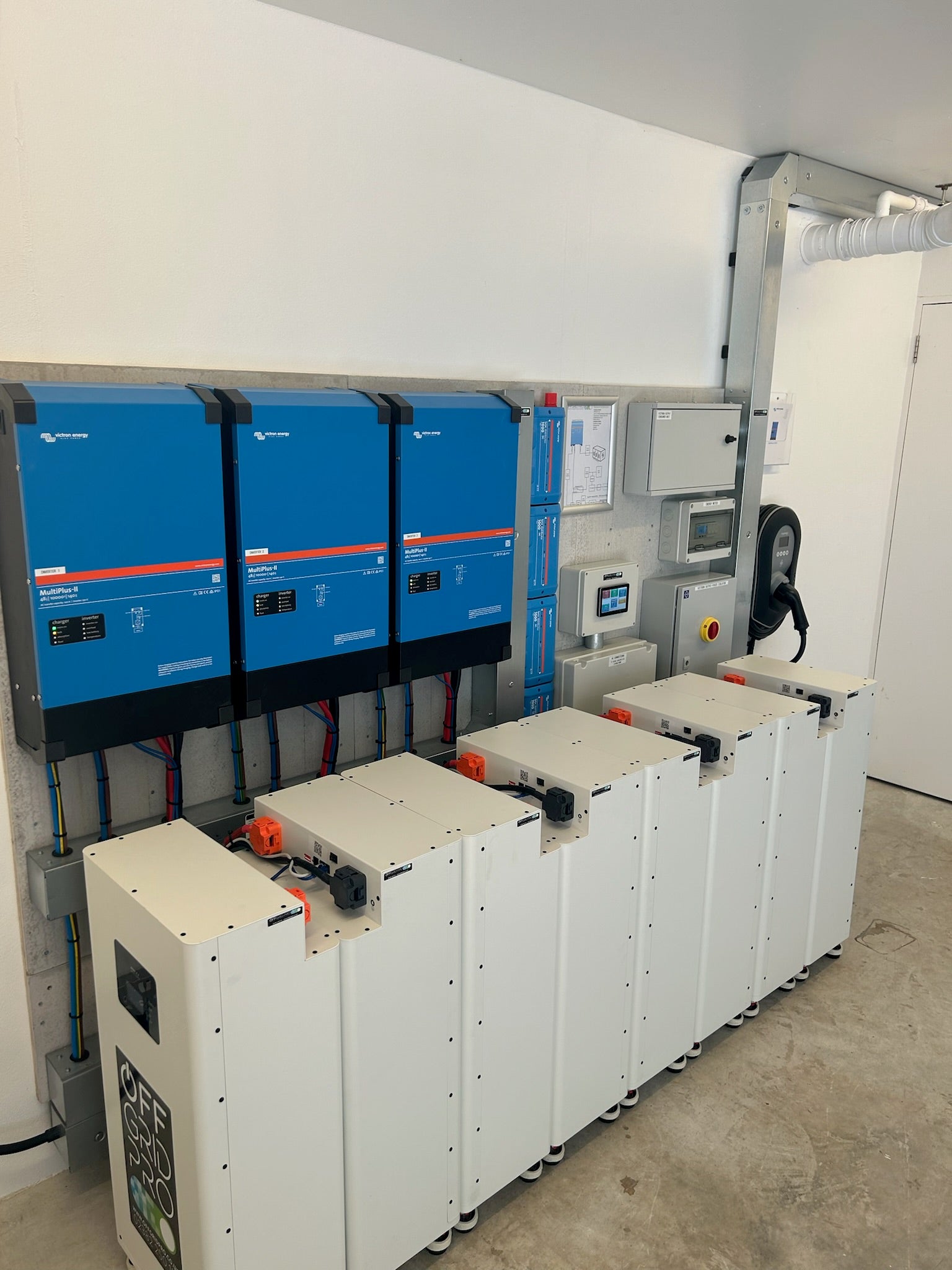

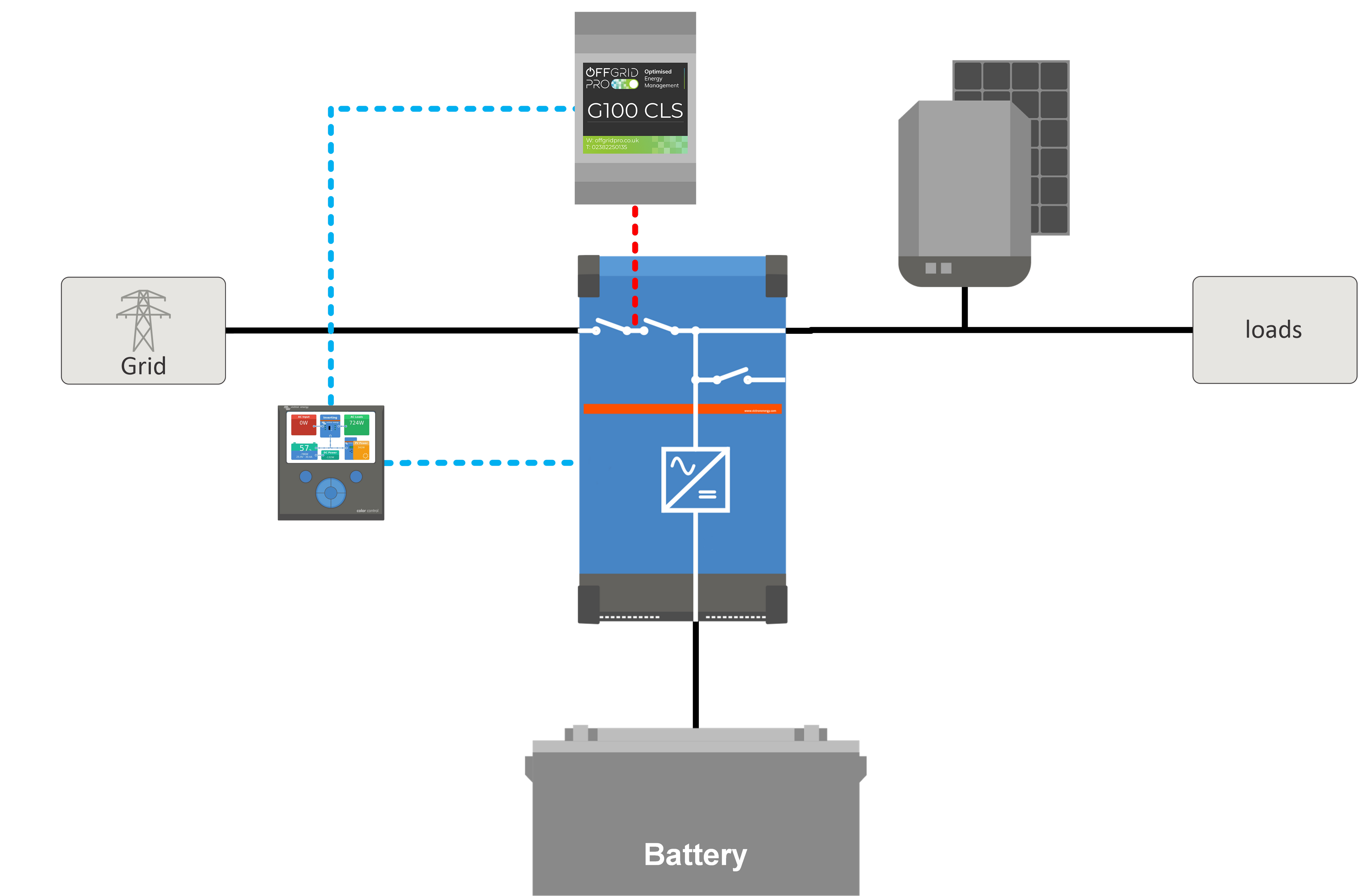

Designed to fully integrate with a Victron ESS installation to bring G100/2 compliance, at an affordable cost, OffGrid Pro is proud to present the OGP G100 CLS!

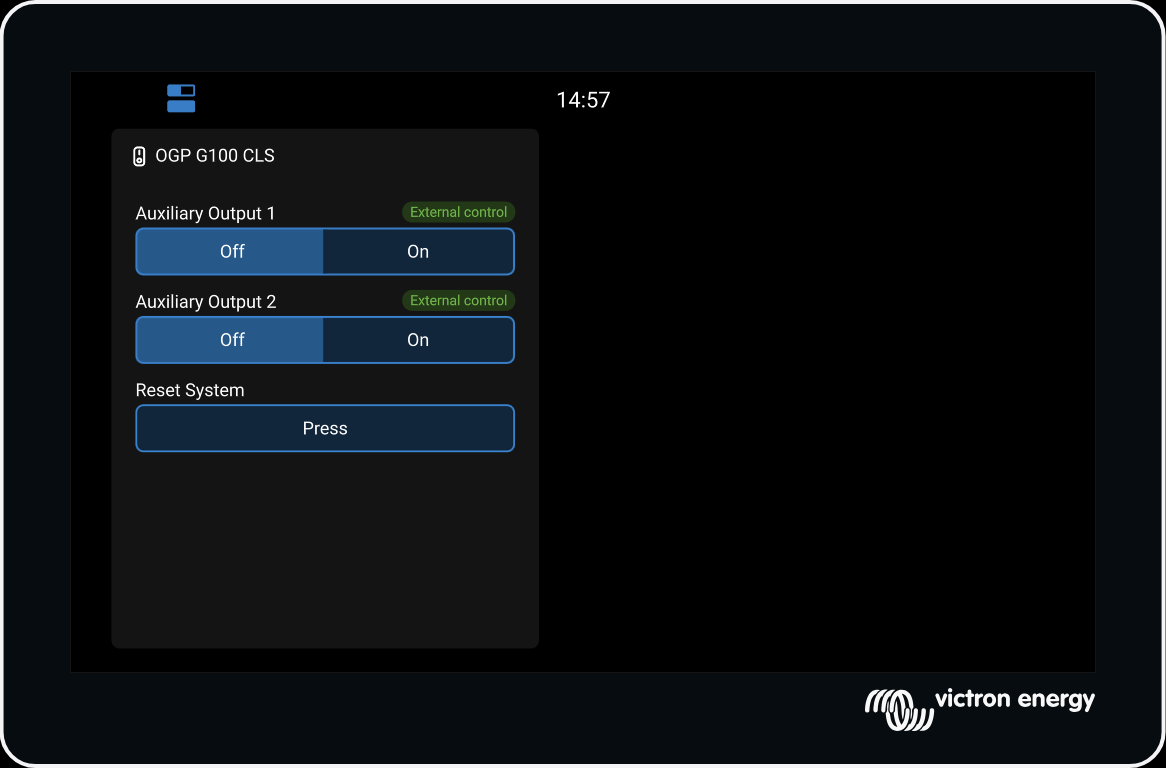

Full status and controls viewable on the GX Touch display or on the remote console
Protects the system within 3ms of detecting a fault
