G100 HP
OffGrid Pro G100 High Power
Bringing G100/2 certification for Victron ESS installations up to 144kW
G100 HP
£1,299.00
Sale price
£1,299.00
Regular price
G100 HP
£1,299.00
Sale price
£1,299.00
Regular price
Taxes included.

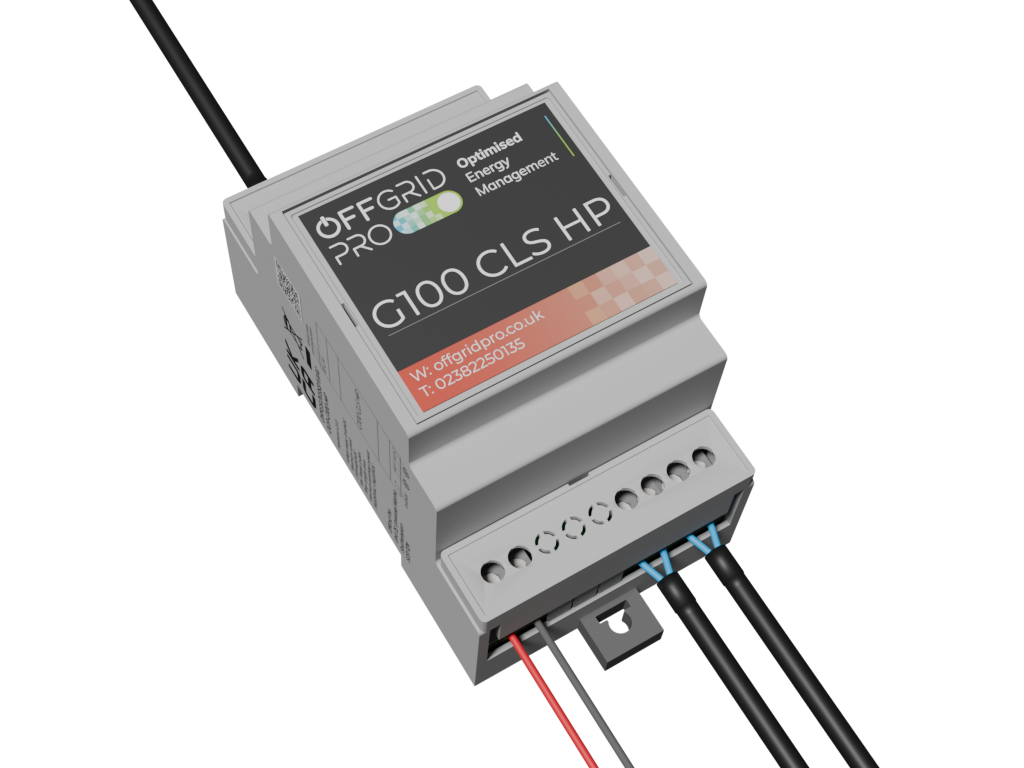

The OffGrid Pro standalone G100 High Power device is an ENA certified CLS which complies with the ENA EREC G100 Issue 2 Amendment 2 specifications suitable for single and multiphase systems. The system features two programmable auxiliary outputs which can be configured to switch any configuration of inverter, consuming device, generation device, as required to be under the export limit.
Unlike our regular G100 CLS, the high power version has been certified for installations up to 144kW, instead of 36kW.
| Voltage input range | 12-60VDC |
| Power consumption | 2.5W |
| Configurable auxiliary channels | 2 |
| Maximum auxiliary channel rating DC | 3A@30VDC |
| Maximum auxiliary channel rating AC | 5A@250VAC |
| Communication method | Modbus RTU |
| Temperature rating | -25 - 70°C |
Included in the box is 1x G100 HP unit, 1x USB to RS485 5m cable, 1x pre-cut tails 3m. Packaged in bio degradable packaging peanuts.

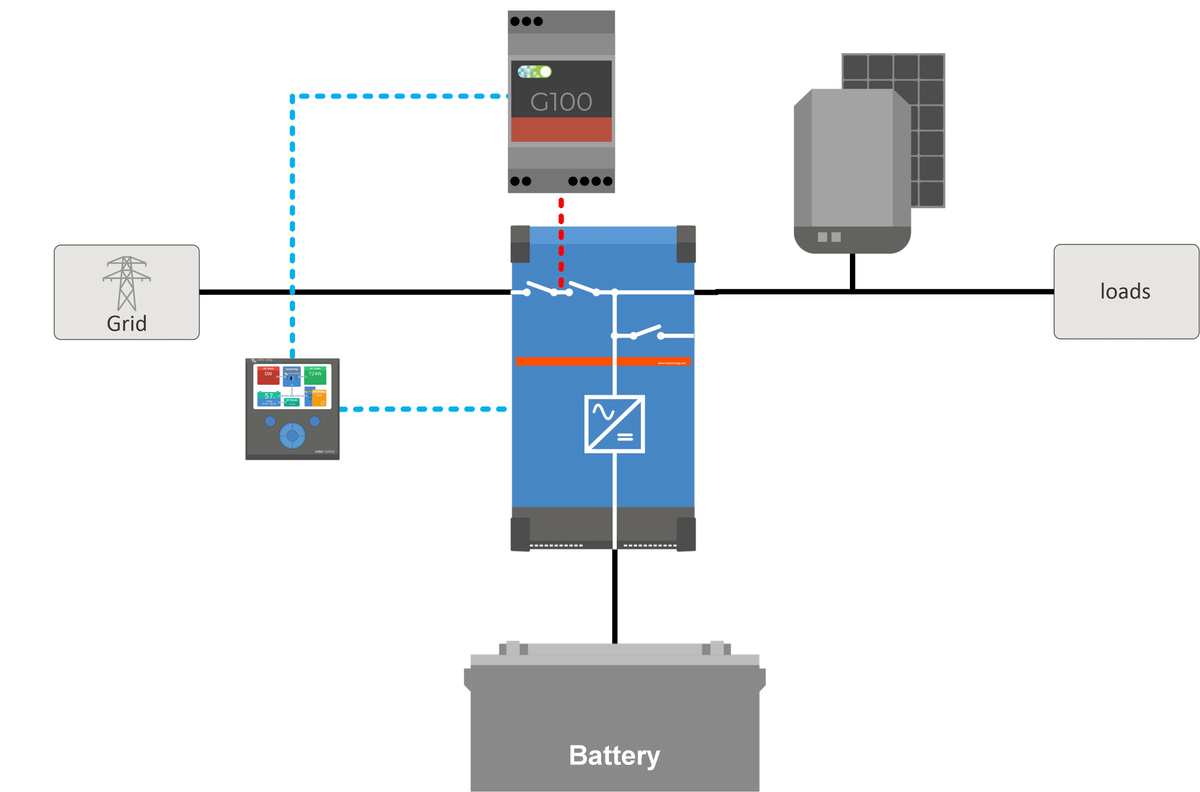

Designed to fully integrate with a Victron ESS installation to bring G100/2 compliance, at an affordable cost, OffGrid Pro is proud to present the OGP G100 HP!
Full status and controls viewable on the GX Touch display or on the remote console
Protects the system within 3ms of detecting a fault
Guides and information
